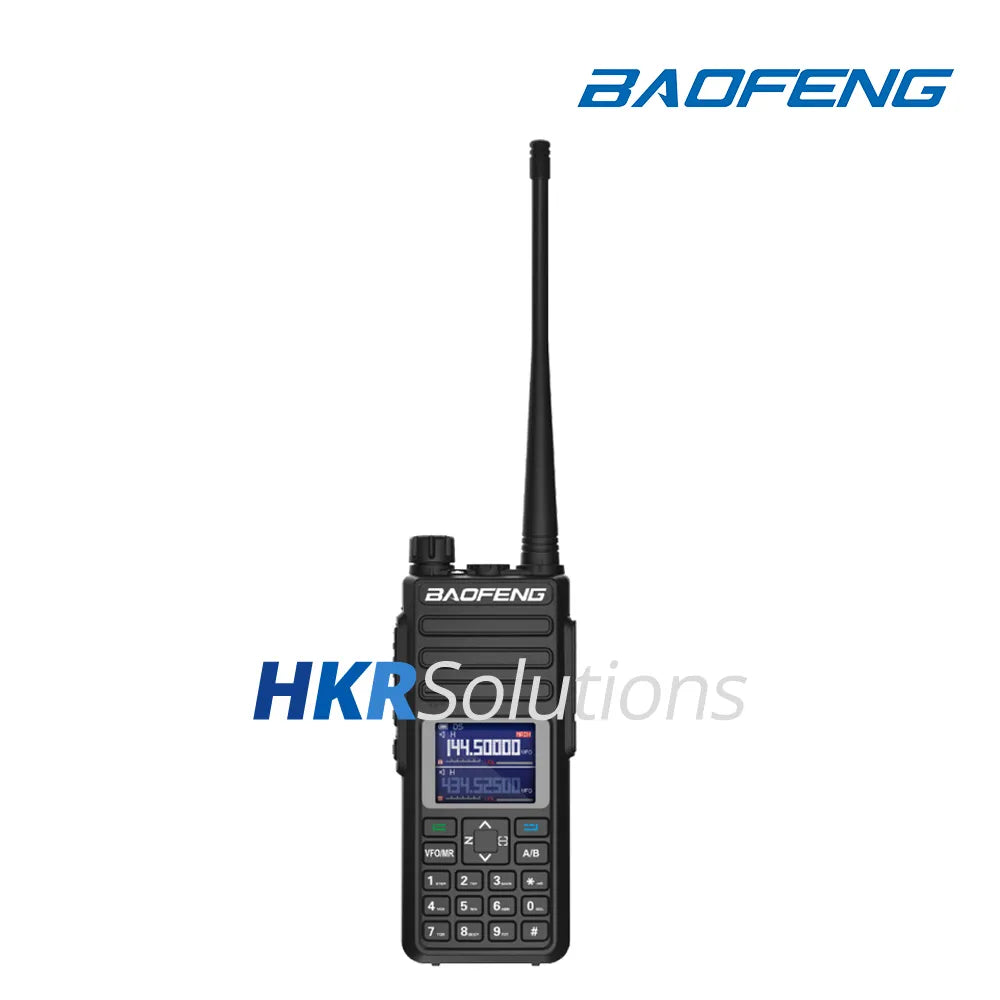

BAOFENG DM-1801H

BAOFENG DM-1801H


Baofeng DM-1801H features a 1.77” color screen, full keyboard for manual frequency input, 999 channel storage, and an open menu system for easy operation.
Продавец: BAOFENG
Артикул: Baofeng-DM-1801H
Тип продукта: Two-Way Radio
Part Number: N/A

Product Inquiry Form

About the price

Due to the daily exchange rate and the customs tax of different countries, we do not disclose the price, please contact the online customer service, or send an Email to us, we will reply within 12 hours.

Send it to any country in the world

We support sending the goods to your freight forwarder in China, or we can send them to DHL, Fedex, UPS and other express companies.

100% New Original authentic

We are the gold agent of many Radio brands, as well as the factory of Radio accessories, we will provide the most cost-effective goods.
BAOFENG DM-1801H

BAOFENG DM-1801H

$0.00
BAOFENG DM-1801H

BAOFENG DM-1801H

$0.00
Description
Description
x

Key Features

  • DTMF Encoding and Decoding
  • English and Chinese Language Options
  • Three-Level RF Output: High, Medium, Low
  • User Customization Options
  • Frequency Hopping and Scrambling Functions
  • Voice Prompts for Menus and Channels
  • High-Capacity Battery for Extended Standby Time
  • Dual Charging Options: Type-C Direct Charging and Dock Charging
  • Power-On Password Management Feature

General Specifications

Frequency Range VHF: 144-148MHz / UHF: 430-440MHz
Channel Number 999 Groups
Channel Spacing ≤16KHz
Operating Voltage DC 7.4V (Rechargeable Lithium Battery)
Frequency Stability ±2.5ppm
Antenna Impedance 50Ω
Dimensions (W×H×D) 64(W)×151(H)×46(D)mm
Weight Approx. 300g (including antenna, belt clip, battery)

Transmitter Specifications

Transmission Current ≤2.8A
Modulation Type (Wide/Narrow) 16KΦF3E / 11KΦF3E
Maximum Frequency Deviation (Wide/Narrow) ≤5KHz / ≤2.5KHz
Signal-to-Noise Ratio (Wide/Narrow) ≥-45dB / ≥-40dB

Receiver Specifications

Receive Sensitivity ≤0.25μV (12dB SINAD)
Maximum Audio Power 1W @10%
Signal-to-Noise Ratio ≥45dB
Receive Current ≤380mA
