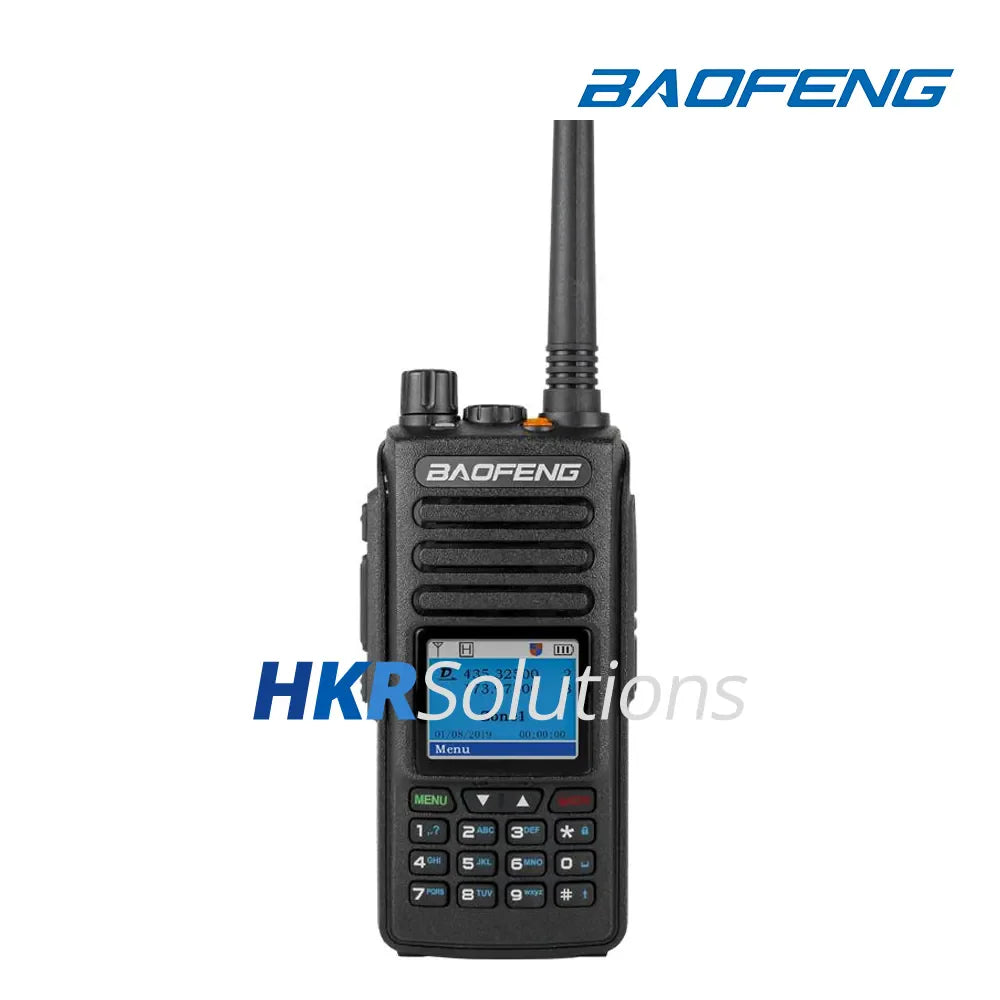

BAOFNEG DM-1702 Radio | GPS | DMR
Baofeng DM-1702 is a DMR dual-slot digital walkie-talkie with 1024 memory channels, a...
Part Number: N/A
Product Inquiry Form
About the price
Due to the daily exchange rate and the customs tax of different countries, we do not disclose the price, please contact the online customer service, or send an Email to us, we will reply within 12 hours.
Send it to any country in the world
We support sending the goods to your freight forwarder in China, or we can send them to DHL, Fedex, UPS and other express companies.
100% New Original authentic
We are the gold agent of many Radio brands, as well as the factory of Radio accessories, we will provide the most cost-effective goods.
Description
xBaofeng DM-1702 is a DMR dual-slot digital walkie-talkie with 1024 memory channels, a full-color LCD, and a full keyboard hand-tuning function.
BAFENG DM-1702 Series Contains DM-1702, DM-1702A & DM-1702B.
Features of BAOFENG DM-1702:
1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly
2. Dual Band VHF 137-174MHz & UHF 400-470MHz
3. GPS Function: Support longitude & latitude position
4. Analogue & Digital Mode
5. 1024 Storage Channel
6. Dual Time Slot, Tier I &II
7. Group Call/Private call
8. Dual Display
9. VOX Function
10. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
11. Scan
12. 16 groups color code selectable
13. 2200mAh 7.4V 16.28Wh High Capacity Li-ion Battery Pack
14. SMS message
15. Support manual programming and PC programming
16. High/Medium/Low Power selectable
17. Frequency/Channel Mode Selectable
General Specifications
| Item Number | DM-1702 |
| Frequency Range | 136-174MHz and 400-470MHz (TX/RX) |
| Channel Number | 1024 |
| Frequency Stability | ±1.0ppm |
| Antenna | High Gain Dual Band Antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.4V |
| Mode of Operation | Simplex or Semi-Duplex |
| Dimensions (W×H×D) | 136×62×36mm |
| Weight | 274g (including battery, antenna) |
Transmitter Specifications
| Output Power | 5W / 1W (Max 5W) |
| Adjacent Channel Power | ≤65dB / ≤60dB |
| Output Consumption | Analog ≤1.6A / Digital ≤0.9A |
| Audio Response | +1 to -3dB |
| Standby Current Consumption | ≤0.18A |
| Digital Protocol | ETSI-TS102 361-1, -2, -3 |
| Modulation Distortion | ≤5% |
| Vocoder Type | AMBE+2™ |
| FM/FM Modulation | 16KΦF3E (25KHz), 141KΦF3E (20KHz), 11KΦF3E (12.5KHz) |
| 4FSK Digital Modulation | 12.5KHz for Data: 7K60FXD / Data and Voice: 7K60FXE |
| Signal-to-Noise (Wide/Narrow) | ≥45dB (25KHz) / ≥40dB (12.5KHz) |
| Antenna Port Spurious | 9KHz-1GHz: ≤-36dBm / 1GHz-12.75GHz: ≤-30dBm |
Receiver Specifications
| Analog Receive Sensitivity | -122dBm (12dB SINAD) |
| Digital Receive Sensitivity | -122dBm (BER ≤5%) |
| Audio Power | 1W |
| Audio Distortion | <10% |
| Signal Imitation | ≥70dB |
| Audio Response | +1 to -3dB |
| Receive Current | ≤380mA |
| Intermodulation (Wide/Narrow) | ≥62dB / ≥58dB |
| PM Noise | ≥65dB / ≥60dB |
| Adjacent Channel Selectivity | ≥45dB (25KHz) / ≥40dB (12.5KHz) |
