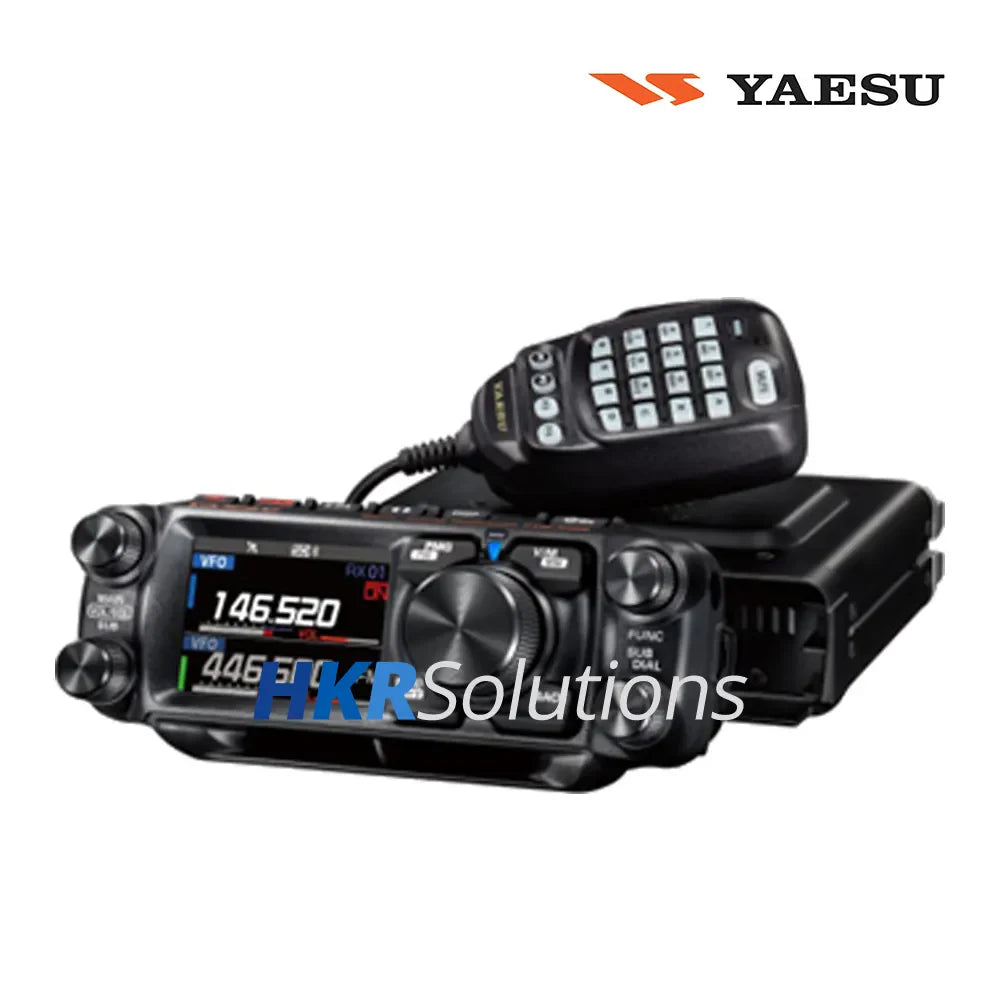

YAESU FTM-500DR Digital Mobile Transceiver Dual Band Mobile Radio
Yaesu FTM-500DR 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceivers offer advanced core features, add exciting new audio...
Part Number: N/A
Product Inquiry Form
About the price
Due to the daily exchange rate and the customs tax of different countries, we do not disclose the price, please contact the online customer service, or send an Email to us, we will reply within 12 hours.
Send it to any country in the world
We support sending the goods to your freight forwarder in China, or we can send them to DHL, Fedex, UPS and other express companies.
100% New Original authentic
We are the gold agent of many Radio brands, as well as the factory of Radio accessories, we will provide the most cost-effective goods.
Description
xYaesu FTM-500DR 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceivers offer advanced core features, add exciting new audio capabilities, and utilize the latest C4FM Digital technology.
Specifications
| Type | Amateur VHF/UHF transceiver |
| Frequency Range TX | 144-148 / 420-450 MHz |
| Frequency Range RX | 108-1000 MHz (Cellular blocked in the US) |
| Tuning Steps | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency Stability | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode TX | FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Mode RX | AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Channels / Memory Management | 1000 regular with alpha tags, Non-volatile EEPROM storage |
| Repeater Shift / Offset | Programmable |
| Power Supply | 11.7-15.8 VDC |
| Current Drain / Power Consumption | RX: Max 500 mA, TX: Max 10 A |
| Antenna Impedance / Connector | 50 ohm / SO-239 |
| Dimensions (W x H x D) | Main unit: 139*42*132 mm (5.47*1.65*5.2"), Control head: 156*64*59 mm (6.14*2.52*2.32") |
| Weight | Total: 1.4 Kg (3.09 lb) |
| Other Features | CTCSS/PL, AESS dual speaker system, APRS functions, 66 channel GPS, Wires-X, DG-ID, MicroSD card slot, Voice recording/playback, DTMF mic, 2.4" TFT touch screen, AMS, Detachable control head, Twin RX, Bluetooth, System Fusion II concept |
Receiver Section
| Receiver System | Double conversion superheterodyne |
| 1st IF | 56.75 MHz (Main RX) - 55.85 MHz (Sub RX) |
| 2nd IF | 450 KHz |
| Sensitivity AM (10 dB S/N) | 0.8 uV (108-137 MHz), 0.8 uV (300-336 MHz) |
| Sensitivity FM (12 dB SINAD) | 0.2 uV (137-150 MHz), 0.25 uV (150-174 MHz), 0.3 uV (174-222 MHz), 0.2 uV (420-470 MHz) |
| Selectivity | AM/FM 12 KHz (-6 dB), 30 KHz (-60 dB) |
| AF Output Power / Speaker | 3 W (Main unit), 6 W (Control head) at 10% distortion / 8 ohm |
| External Speaker Connector | 3.5 mm |
Transmitter Section
| RF Output Power | High: 50 W, Mid: 25 W, Low: 5 W (2m/70 cm) |
| Modulation System | FM: Variable reactance, DV: 4FSK/C4FM |
| Max FM Deviation (Factory Set) | FM: ±5 KHz, NFM: ±2.5 KHz |
| Spurious Emissions | Better than -60 dB |
| Microphone Impedance / Connector | 2 Kohm / 6-pin (Modular) |
Miscellaneous
| Manufactured | 2023-202x |
| Options / Accessories | CT-132, FVS-2, MEK-5, MH-42C6J, MLS-100, MMB-103, SCU-58, SJMK-500, SSM-85D, SSM-BT10, and more |
