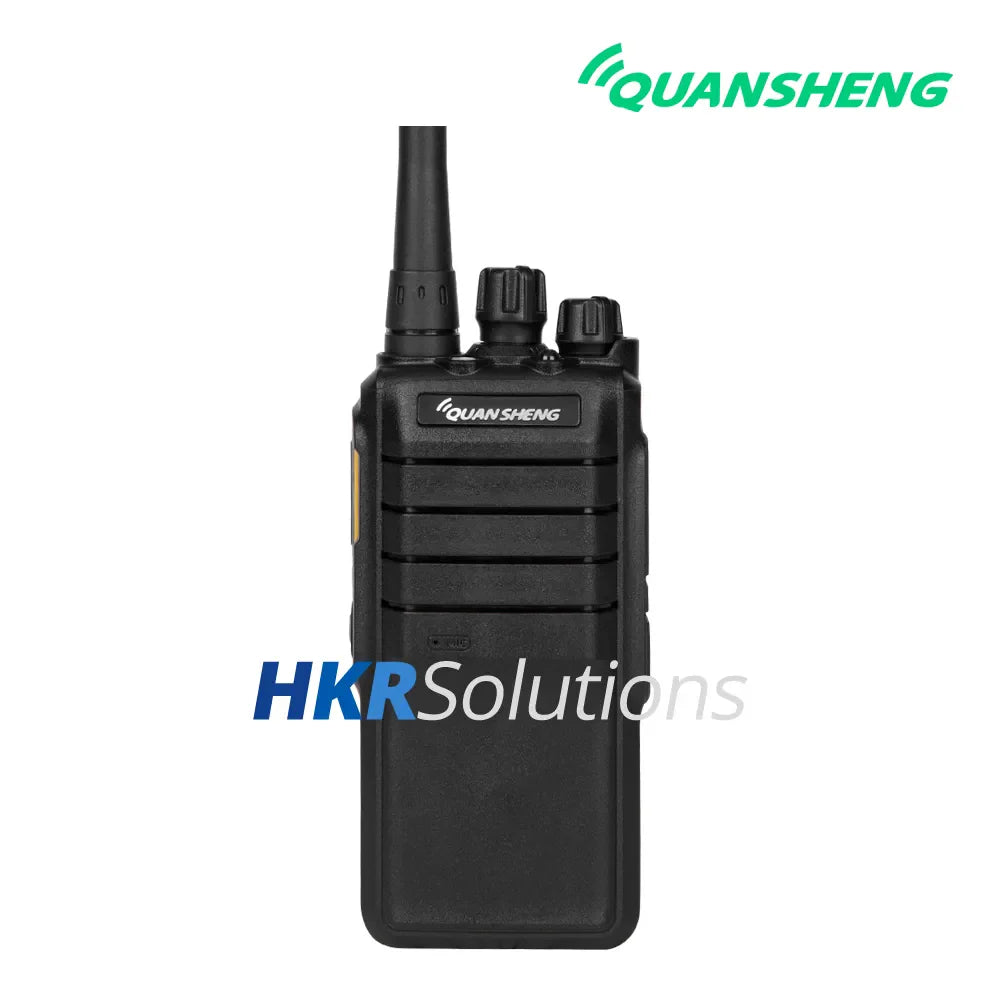

QUANSHENG TG-698 Radio offers advanced features like adjustable squelch, PC programmability, Type-C charging,...
QUANSHENG TG-698 Radio offers advanced features like adjustable squelch, PC programmability, Type-C charging, H/L power selection, and wireless cloning for versatile communication.
Frequency Range | 400-480MHz |
Operating Voltage | 3.7V |
Channel | 16 |
Antenna Impedance | 50Ω |
Frequency Stability | ±2.5ppm |
Operating Temperature | -20℃~60℃ |
Dimension | 127mm x 55mm x 39mm |
Weight | 189g (with battery/without antenna) |
Battery Capacity | 2000mAh |
Output Power | ≤3W |
Stray Power | ≤7.5μW |
Emission Current | ≤1.3A |
Adjacent Channel Power | ≤-65dB / ≤-60dB |
Modulation Sensitivity | 8-20mV |
Modulation Mode | 16KФF3E / 11KФF3B |
CTCSS/DCS Deviation | 0.6±0.2KHz / 0.4±0.2KHz |
Sensitivity | ≤0.25/0.25uV |
Audio Frequency | ≤0.5W |
Audio Distortion | <10% |
Spurious Rejection | ≥65dB |
Receiving Current | ≤380mA |
Intermodulation | ≥60dB / 55dB |
Adjacent Channel Selectivity | ≥65dB / 60dB |
Payment:
● Due to different customs requirements and shipping policies, some regions may fail to pay.
● Please contact our salesman and we will send the invoice to your email as soon as possible.
● We also suggest to pay through HSBC, which is the most cost-effective, so that your cost is lower.
Service:
● We are the prime agent for many Radio brands and we guarantee that all products are new and original.
● We have 10+ years of supply chain capacity and a lot of inventory, so we have the best price.
● We have our own Radio accessories factory, we can provide all kinds of solutions and goods.
